Description

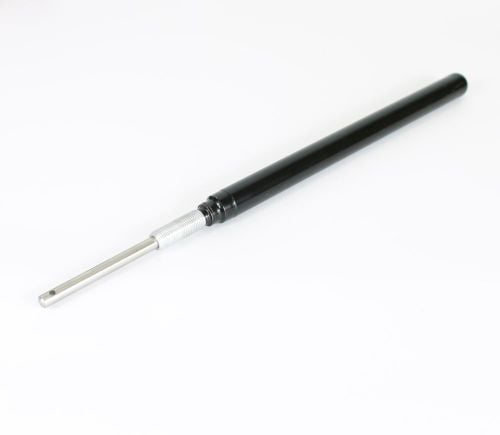

This cylinder is a replacement part for the internal mechanism of Gardening Naturally automatic greenhouse window openers.
It is designed exclusively to fit Gardening Naturally autovent systems and is not suitable for use with other brands or models. The cylinder is supplied with a two-year warranty.
Specifications
- Finish: Black
- Cylinder length: 20 cm
Measurements
- Total length when closed: 28.5 cm
- Total length when fully extended: 33 cm
Technical details
- Diameter of hole: 2 mm
- Thread length: 25 mm
- Piston rod thickness: Approximately 5 mm
Wax-Filled Cylinder Operation
The cylinder contains a wax and oil mixture. As temperatures rise, the wax expands and pushes the piston rod outward. As temperatures fall, the wax contracts and the piston retracts. This movement allows the greenhouse window mechanism to respond to temperature changes as intended when installed within a compatible Gardening Naturally autovent system.
